Long Carbon fiber Polymer

/

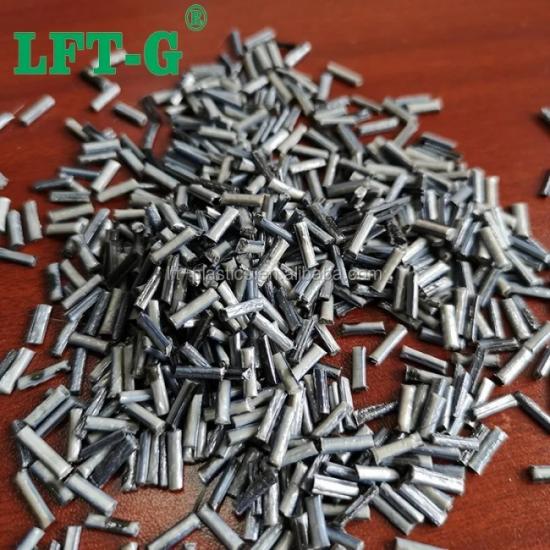

Long carbon fiber Reinforced Polyetheretherketone (PEEK)

/Carbon Fiber Reinforced PEEK Resin Pellets Injection Molding

PEEK CF
PEEK CF

Carbon Fiber Reinforced PEEK Resin Pellets Injection Molding

PEEK is a versatile molding resin ideal for applications requiring sterilized equipment or containers. It is highly resistant to chemicals and heat and capable of resisting submersion in liquids long-term. It also can generally be subjected to harsh operational environments. The mechanical properties of PEEK allow it to be used as reinforcement material in various scenarios.

  • item no.:

    PEEK CF

  • Payment:

    Discussed

  • product origin:

    China

  • Color:

    Natural color or Customized

  • shipping port:

    Xiamen

  • Lead Time：

    2-10 workings days
inquiry now
Product Detail
PEEK Long Carbon Fiber Reinforced Composite

Excellent Strength-to-Weight Ratio | Superior Thermal Stability

Outstanding Chemical Resistance | Outstanding Fatigue Resistance

Download Product Brochure (PDF)


Key Properties

PEEK Long Carbon Fiber Composite offers excellent strength-to-weight ratio, superior thermal stability, outstanding chemical resistance, and exceptional fatigue and wear resistance, making it an ideal choice for lightweight structural applications requiring extreme performance, durability, and long-term reliability. Below are the main mechanical and thermal characteristics:


Property Typical Value
 Test Method
Density
1.45 g/cm³
ASTM D-792
Tensile Strength
299 MPa
ISO：527

Un-Notched Izod Impact

726 J/m
ASTM D-256
Heat Deflection Temperature
204 °C
ISO 75-2
Flexural Modulus
25017 MPa

ASTM D-790

Molding Shrinkage
0.10 - 0.30 %
ASTM D-955


Technical Advantages


Excellent Strength-to-Weight Ratio  Superior Thermal Stability
Outstanding Chemical Resistance  Exceptional Dimensional Stability
Excellent Fatigue Resistance  Superior Wear Resistance


Applications
PEEK Long Carbon Fiber Composites are widely used in advanced engineering applications where excellent strength-to-weight ratio, superior thermal stability, outstanding chemical resistance, and exceptional fatigue and wear resistance are essential. Main fields of application include:

Automotive: under-the-hood components, structural supports, and high-performance lightweight parts exposed to heat, chemicals, and mechanical stress.
Electrical & Electronics: connector housings, high-temperature casings, and components requiring dimensional stability, chemical resistance, and long-term reliability.
Industrial: gears, pump and valve components, and structural supports operating under repeated stress, high temperatures, and aggressive chemical environments.
Aerospace & Consumer Goods: precision components, high-performance appliance parts, and sports or recreational equipment requiring extreme durability, lightweight design, and long service life.


Processing Guidelines

PA12 long glass fiber reinforced composites can be processed using conventional thermoplastic equipment. Recommended parameters:


Drying: Not always necessary, but 100-120℃ for 4-6 hours recommended.
Mold Temperature: 80-125℃ for optimal surface quality.
Screw Design: Use low-shear screws to avoid fiber breakage.


Additional Information
Packaging: 25kg/bag or jumbo bag
Processing Methods: Injection molding / extrusion
Storage: Keep dry, avoid direct sunlight
Shelf Life: 12 months under recommended storage conditions


Certifications
