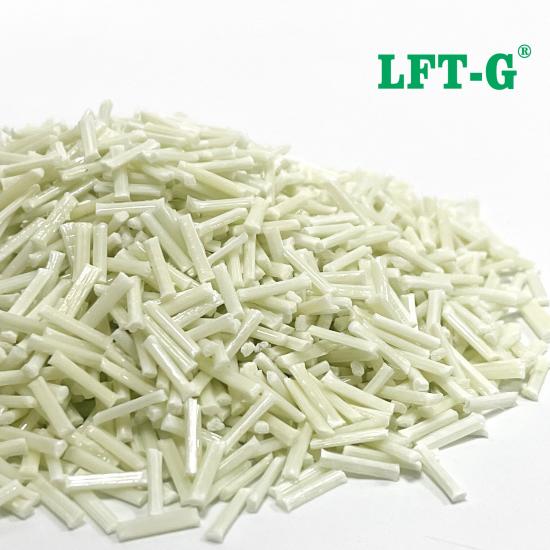

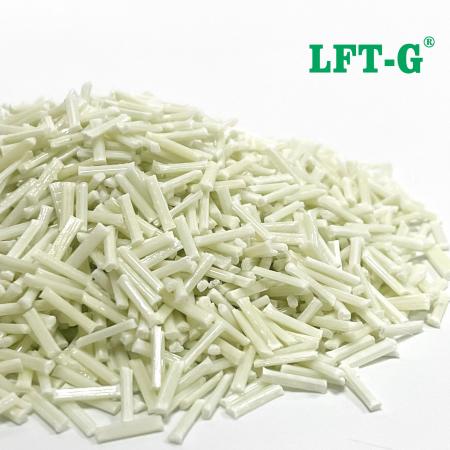

Glass Fiber Reinforced PPA Nylon Resin Pellets Injection Molding

Fiber-reinforced PPA has high temperature resistance, high strength and low density, so it is considered the best resin to replace steel with plastic in the future. It can be used in many industrial and civil fields, including automobiles, equipment, entertainment, food processing, communications, electronics and electrical , power tools, gardening, etc.
  • item no.:

    PPA GF
  • Payment:

    Discussed
  • product origin:

    China
  • Color:

    Natural color or Customized
  • shipping port:

    Xiamen
  • Lead Time:

    2-10 workings days
inquiry now
Product Detail
PPA Long Glass Fiber Reinforced Composite

High Heat Resistance | Excellent Chemical Resistance

Enhanced Rigidity | Superior Dimensional Stability

Download Product Brochure (PDF)



Key Properties

PPA long glass fiber composite offers high heat resistance, excellent chemical resistance, superior dimensional stability, and high impact strength, making it a preferred choice for applications requiring long-term performance under demanding conditions. Below are the main mechanical and thermal characteristics:


Property Typical Value
Test Method
Density
1.56 g/cm³
ASTM D-792
Tensile Strength
344 MPa
ISO:527

Notched Izod Impact

332 J/m
ASTM D-256
Heat Deflection Temperature
308 °C
ISO 75-2
Flexural Modulus
13052 MPa

ASTM D-790

Molding Shrinkage
0.10 - 0.30 %
ASTM D-955



Technical Advantages


High Heat Resistance   Excellent Chemical Resistance
Superior Dimensional Stability  High Impact Strength
Enhanced Rigidity   Reliable Toughness



Applications
PPA long glass fiber composites are widely applied in engineering fields where high heat resistance, chemical resistance, and dimensional stability are essential. Main fields of application include:

Automotive: under-the-hood components, fuel system parts, brackets, high-temperature structural elements.
Electrical & Electronics: connector housings, sensor enclosures, switch components, high-temperature mounts.
Industrial: pump housings, mechanical gears, valve components, structural supports for high-temperature environments.
Consumer Goods: durable tool housings, high-performance appliance components, industrial-grade sports equipment.



Processing Guidelines

PPA long glass fiber reinforced composites can be processed using conventional thermoplastic equipment. Recommended parameters:


Drying: Not always necessary, but 130℃ for 2-4 hours recommended.
Mold Temperature: 120-150℃ for optimal surface quality.
Screw Design: Use low-shear screws to avoid fiber breakage.



Additional Information
Packaging: 25kg/bag or jumbo bag
Processing Methods: Injection molding / extrusion
Storage: Keep dry, avoid direct sunlight
Shelf Life: 12 months under recommended storage conditions



Certifications
