PA12 Polyamide12 30%Long Glass Fiber composite higher performance lightweight for automotive

PA12 Introduction

The scientific name of PA12 is polydodecalactam, also known as nylon 12. The basic raw material for its polymerization is butadiene, which can depend on petrochemicals. It is a semi-crystalline - crystalline thermoplastic material. Its properties are similar to those of PA11, but the crystal structure is different; PA12 is an excellent electrical insulator and, like other polyamides, does not suffer from moisture-related insulating properties. PA12 has a number of improved plasticizing and reinforcing properties.

Compared to PA6 and PA66, these materials have lower melting points and densities, and have very high moisture recovery rates; PA12 is not resistant to strong oxidizing acids. It flows very well. The shrinkage is between 0.5% and 2%, depending mainly on the material species, wall thickness and other process conditions.

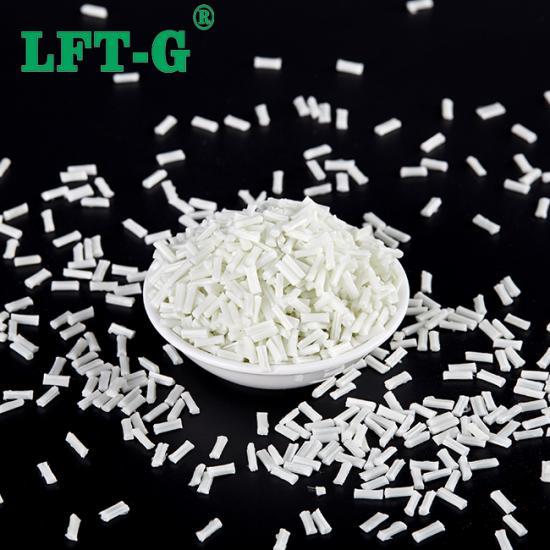

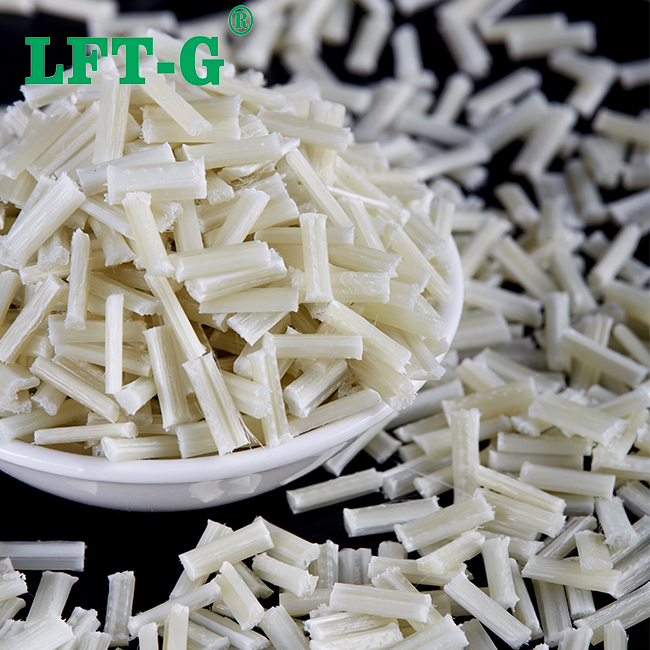

PA12-Long Glass Fiber

Nylon glass fiber material is a composite material, adding glass fiber on the basis of the original nylon material, which makes the material have the following characteristics:

High temperature resistance, good dimensional stability, good toughness, good insulation, good corrosion resistance, and high mechanical strength.

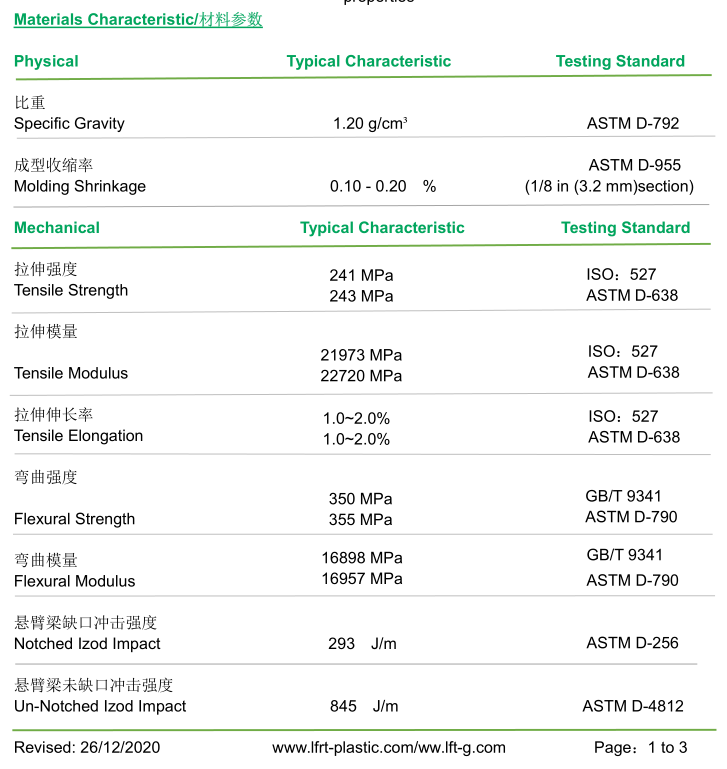

TDS for reference

Nylon 12 is the most widely used long carbon chain nylon, it has most of the general properties of nylon in addition to low water absorption, and has the advantages of high dimensional stability, high temperature resistance, corrosion resistance, good toughness, and easy processing. Compared with PA11, another long carbon chain nylon material, PA12's raw material butadiene is only one-third the price of PA11's raw material castor oil, and can be used in most scenarios instead of PA11, and is widely used in many fields such as automotive fuel lines, air brake hoses, submarine cables, and 3D printing.

Application filed

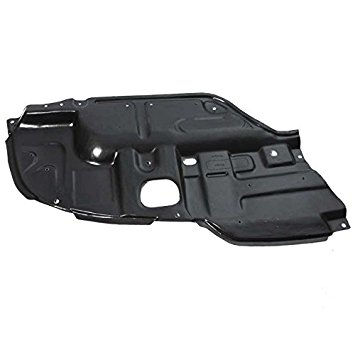

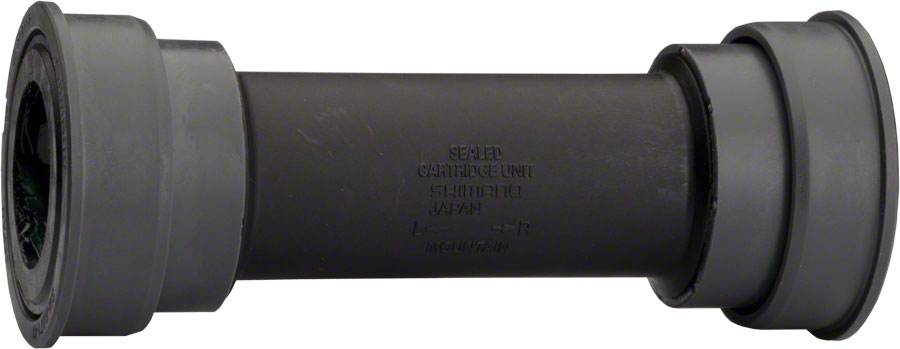

Suitable for automotive, sports parts, solor energy, photovoltaic industry and other industry.

PA12 series

Package

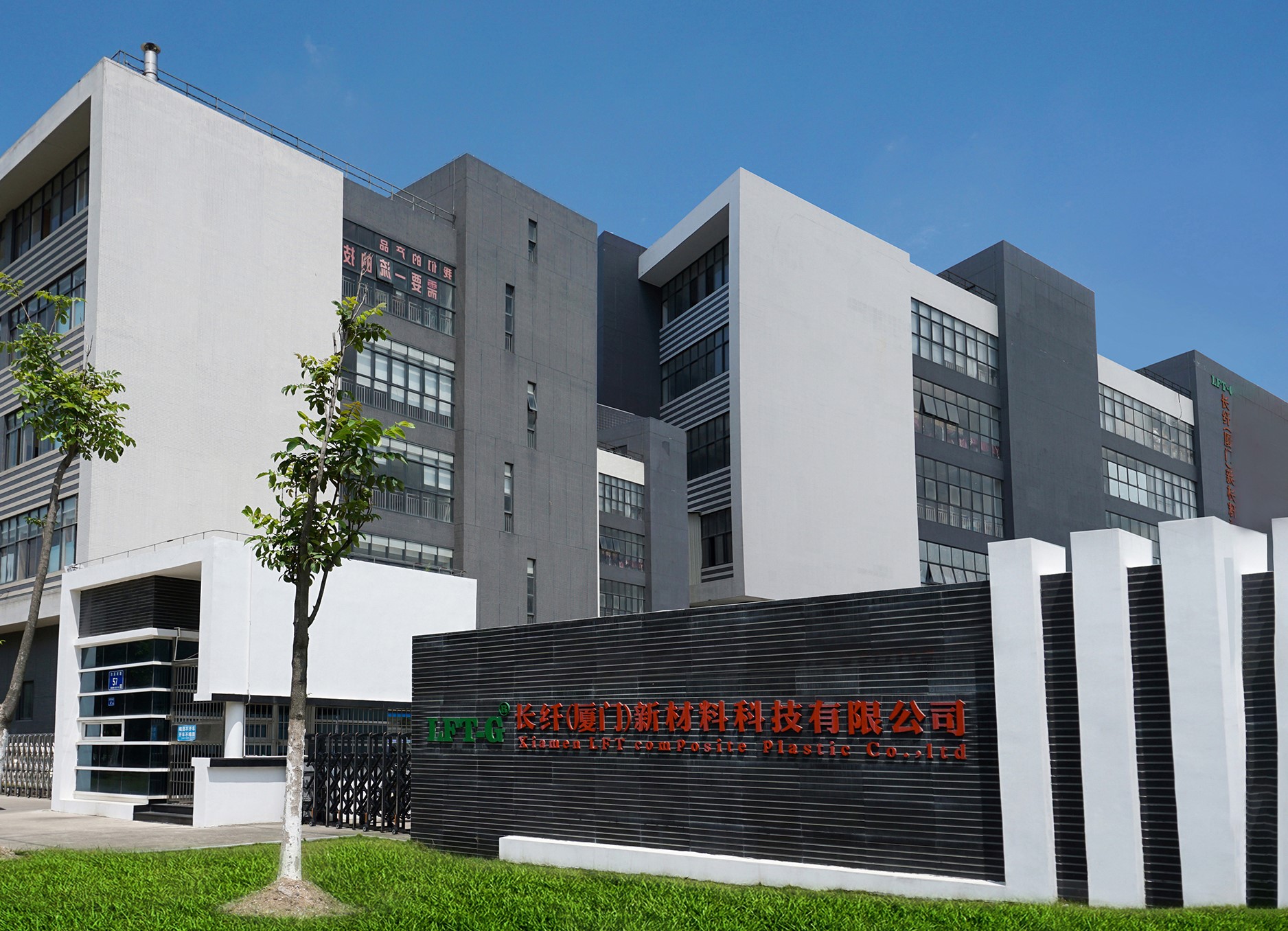

About us

Xiamen LFT composite plastic Co., Ltd is a brand-name company that focuses on LFT&LFRT. Long Glass Fiber Series (LGF) & Long Carbon Fiber Series (LCF). The company's thermoplastic LFT can be used for LFT-G injection molding and extrusion, and can also be used for LFT-D molding. It can be produced according to customer requirements: 5~25mm in length. The company's continuous infiltration reinforced thermoplastics have passed ISO9001&16949 system certification,  and the products have obtained lots of national trademarks and patents.
