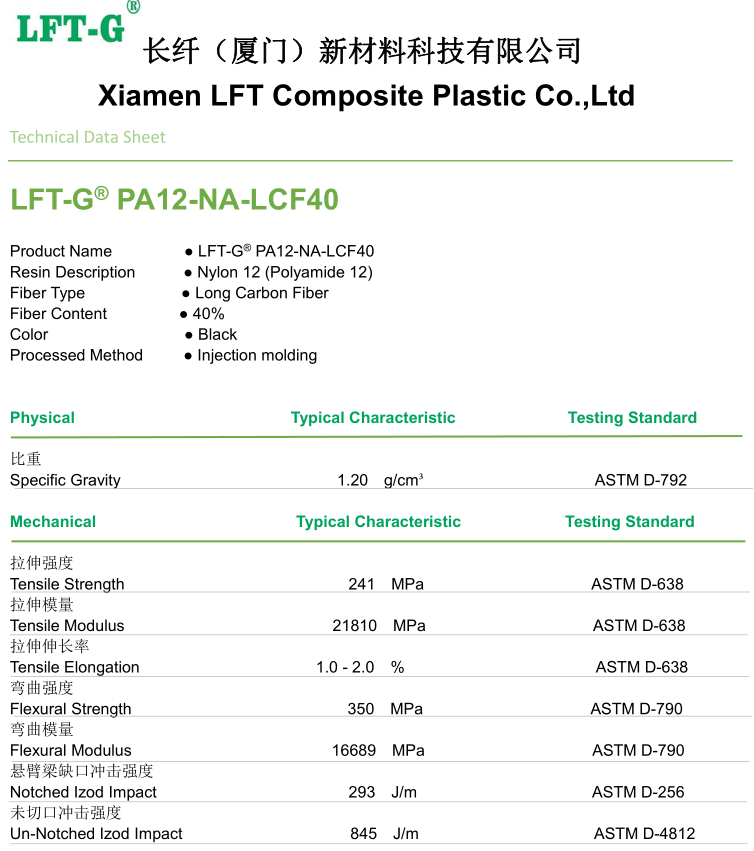

polyamide12 with fiber carbon nylon 12 raw material prices lcf40

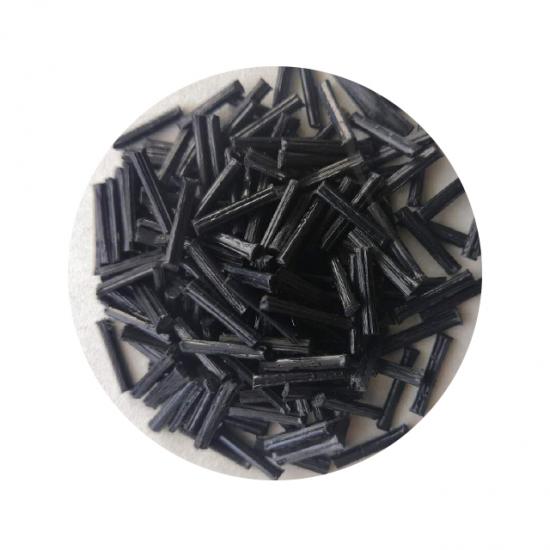

PA12 pellets is a good electrical insulator and does not affect the insulation performance due to moisture like other polyamides. PA12 granules as no resistance to strong oxidizing acids. The viscosity of PA12 particles mainly depends on humidity, temperature and storage time; its fluidity is good.

PA12 raw material forming features include the following:
(1) The water absorption performance is lower, but it is easy to change color under high temperature environment;
(2) The melting point is high and the melting temperature range is narrow;
(3) The viscosity of the melt is small and the fluidity is large;
(4) The cooling rate of the melt has a great influence on its structure and performance;
(5) The shrinkage rate is relatively large.

The most critical part of the extrusion process of nylon 12 is that it must be dried before molding to keep the moisture within the range of 0.1%-0.3% (preferably below 0.1%). Because PA12 plastic is easy to oxidize at high temperature and has a tendency to degrade and discolor, POLYAMIDE12 material should be vacuum dried. The drying temperature is 80100 degrees Celsius, the vacuum degree is greater than 0.0933MPa (700mmHg), and the drying time is 8-12h

Polyamide12/Nylon12 long carbon fiber reinforced thermoplastic material is widely used in solar energy, automobiles, cable sleeves, bearings, etc.Due to its high resistance, high temperature resistance, high heat resistance, good dimensional stability and low warpage.

If you are interested, please contact sale04@lfrtplastic.com for lucy.
