Products

PPA reinforced filling long glass fiber

Fiber-reinforced PPA has high temperature resistance, high strength and low density, so it is considered the best resin to replace steel with plastic in the future. It can be used in many industrial and civil fields, including automobiles, equipment, entertainment, food processing, communications, electronics and electrical , power tools, gardening, etc.
  • item no.:

    PPA-NA-LGF40
  • Payment:

    T/T or L/C (other payment ways also can be di
  • product origin:

    Xiamen, China
  • Color:

    Original color (also can be customized)
  • shipping port:

    Xiamen, China
  • Lead Time:

    7-15 days after shipment
inquiry now
Product Detail

Product Details

What is Glass-Filled PPA?

PPA-LGF50 is a high-performance engineering thermoplastic composite consisting of Polyphthalamide (PPA) reinforced with 50% Long Glass Fiber (LGF). Manufactured using an advanced pultrusion process, continuous glass fibers are fully impregnated with molten PPA resin before pelletizing, allowing significantly better fiber length retention after injection molding than conventional short glass fiber reinforced materials.

Compared with standard PA66, PA6, or short glass fiber reinforced PPA, PPA-LGF50 offers substantially higher stiffness, tensile strength, creep resistance, dimensional stability, and fatigue performance, especially under elevated temperatures and long-term mechanical loading.

PPA itself provides excellent heat resistance, low moisture absorption, outstanding chemical resistance, and superior electrical insulation. Combined with long glass fiber reinforcement, PPA-LGF50 becomes an ideal lightweight engineering material for demanding structural applications where metal replacement, high reliability, and long service life are required.

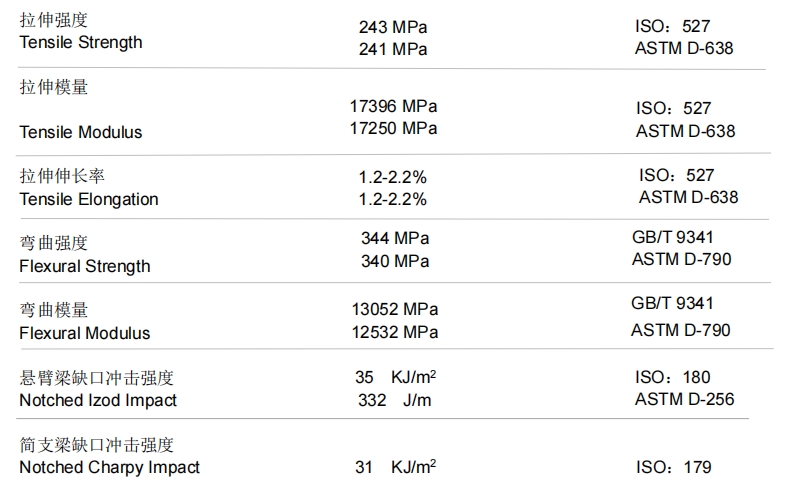

TPU with 40% Long Glass Fiber
Polyphthalamide (PPA) reinforced with 50% Long Glass Fiber (LGF)

Typical Applications

PPA-LGF40 combines the outstanding heat resistance, dimensional stability, chemical resistance, and electrical insulation of PPA with the superior reinforcement provided by long glass fibers. It delivers exceptional mechanical performance under high temperatures and continuous loading, making it an excellent choice for demanding engineering applications where lightweight design and long-term reliability are essential.
TPU-LGF40 Applications

Automotive Components

Engine compartment parts, thermostat housings, oil system components, structural brackets, connectors, and lightweight metal replacement applications.

E & E

High-temperature connectors, electrical housings, sensor components, switches, and insulation parts requiring excellent dimensional stability.

New Energy

Battery structural components, inverter housings, charging system parts, and thermal management components exposed to elevated temperatures.

Industrial

Pump components, gears, bearing cages, mechanical supports, and precision engineering parts operating in harsh chemical or thermal environments.

Frequently Asked Questions

How do you ensure PPA-LGF50 quality?
Quality is controlled throughout the complete manufacturing process, including raw material inspection, fiber impregnation, pelletizing, and final mechanical property verification. Each production batch undergoes comprehensive quality inspection to ensure consistent fiber distribution, dimensional stability, mechanical strength, and processing performance. Certificate of Analysis (COA), Technical Data Sheets (TDS), and customized testing reports are available upon request.
Can you customize PPA-LGF materials?
Yes. We provide customized PPA-LGF formulations according to different engineering requirements. Our technical team can tailor glass fiber content, color, heat resistance, flame retardancy, impact strength, wear resistance, UV resistance, and processing characteristics to satisfy specific application needs.
What are the advantages of PPA-LGF50 compared with PA66
Compared with conventional PA66, PPA-LGF50 offers significantly better heat resistance, lower moisture absorption, higher dimensional stability, improved creep resistance, and superior long-term mechanical performance. These advantages allow PPA-LGF50 to perform reliably in high-temperature and chemically aggressive environments where traditional polyamides may experience deformation or property degradation.
Can PPA-LGF50 replace metal components?
Yes. PPA-LGF50 is widely used as a lightweight alternative to aluminum and zinc alloy components. Its excellent stiffness, high heat resistance, low creep, and outstanding dimensional stability enable manufacturers to reduce weight, simplify manufacturing, improve corrosion resistance, and lower overall production costs while maintaining excellent structural performance.
How long is the lead time?
Standard PPA-LGF50 grades are typically shipped within 3–7 working days after payment. Customized materials usually require 7–15 working days, depending on formulation requirements, testing procedures, and order quantity. The exact delivery time will be confirmed according to your project requirements.

Talk to an Expert

Need help selecting the right Long Glass Fiber reinforced material? Our engineering team can assist with material selection, technical support, pricing, TDS, and sample recommendations for PPA-LGF50 and other LFT materials.

Email: sales02@lfrtplastic.com
WhatsApp: +86 139 5009 5727
Send a Message

If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
