Long Glass fiber Polymer

/

Long Glass fiber Reinforced Polyamide nylon PA12

/Glass Fiber Reinforced Nylon 12 Resin Pellets Injection Molding

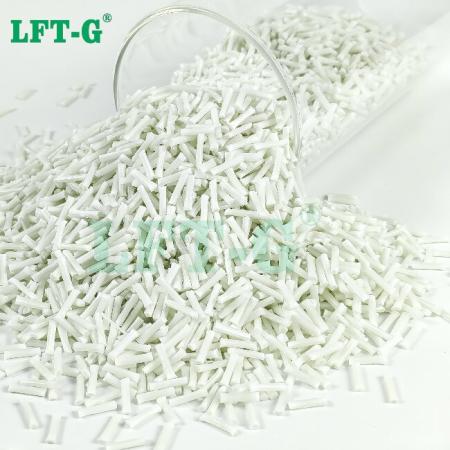

Glass Fiber Reinforced Nylon 12 Resin Pellets Injection Molding

Pa12 gf is produced by mixing nylon 12 compounds with glass fibers in an extruder or a compounding machine. The mixture is then granulated into pellets that can be used for injection molding or other processing methods. Pa12 gf can also be produced by adding glass fibers directly to the injection molding machine during the molding process.
  • item no.:

    PA 12 GF
  • Payment:

    Discussed
  • product origin:

    China
  • Color:

    Natural color or Customized
  • shipping port:

    Xiamen
  • Lead Time:

    2-10 workings days
inquiry now
Product Detail
PA 12 Long Glass Fiber Reinforced Composite

Low Moisture Absorption | Excellent Chemical Resistance

High Impact Strength | Superior Dimensional Stability



Key Properties

PA12 long glass fiber composite provides low moisture absorption, excellent chemical resistance, high impact strength, and superior dimensional stability, making it an ideal material for demanding engineering applications. Below are the main mechanical and thermal characteristics:


Property Typical Value
Test Method
Density
1.46 g/cm³
ASTM D-792
Tensile Strength
215 MPa
ISO:527
Notched Impact Strength
37 KJ/m2
ISO:180
Heat Deflection Temperature
254 °C
ISO 75-2
Flexural Modulus
1250 MPa
GB/T 9341
Molding Shrinkage
0.10 - 0.30 %
ASTM D-955



Technical Advantages


High Impact Strength   Excellent Chemical Resistance
Low Moisture Absorption  Superior Dimensional Stability
Good Weatherability  Enhanced Wear Resistance



Applications
PA12 long glass fiber composites are widely applied in engineering fields where low moisture absorption, chemical resistance, and high impact strength are essential. Main fields of application include:

Automotive: fuel lines, air ducts, exterior trim parts, lightweight brackets.

Electrical & Electronics: cable protection systems, sensor housings, connector bodies, switch components.

Industrial: fluid handling components, pipe fittings, pump housings, precision gears.

Consumer Goods: sports equipment, power tool housings, durable casings, recreational products.



Processing Guidelines

PA12 long glass fiber reinforced composites can be processed using conventional thermoplastic equipment. Recommended parameters:


Drying: Not always necessary, but 85-105℃ for 3–5 hours recommended.
Mold Temperature: 75–90℃ for optimal surface quality.
Screw Design: Use low-shear screws to avoid fiber breakage.



Additional Information
Packaging: 25kg/bag or jumbo bag
Processing Methods: Injection molding / extrusion
Storage: Keep dry, avoid direct sunlight
Shelf Life: 12 months under recommended storage conditions



Certifications
