Long Glass fiber Polymer

/

Long Glass fiber Reinforced Poly (butylene terephthalate) PBT

/Glass Fiber Reinforced PBT Resin Pellets Injection Molding

PBT GF
PBT GF

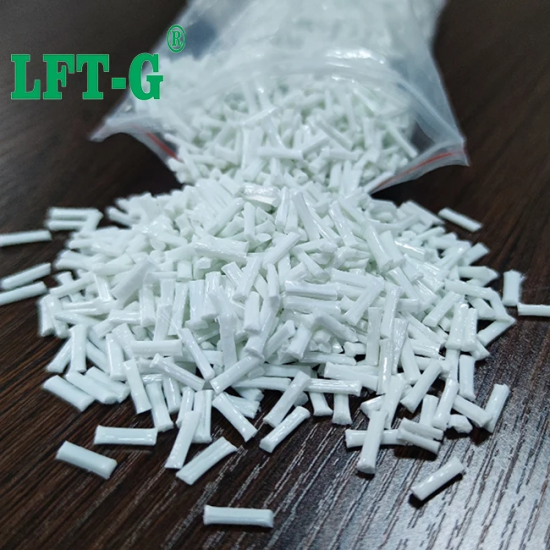

Glass Fiber Reinforced PBT Resin Pellets Injection Molding

Adding glass fiber to PBT is a commonly used method to enhance and modify PBT. The bonding force between glass fiber and PBT resin is good. After adding a certain amount of glass fiber to PBT resin, it can not only maintain the original advantages of PBT resin such as chemical resistance and processability, but also greatly improve its mechanical properties and overcome the problems. PBT resin notch sensitivity.

  • item no.:

    PBT GF

  • Payment:

    Discussed

  • product origin:

    China

  • Color:

    Natural color or Customized

  • shipping port:

    Xiamen

  • Lead Time：

    2-10 workings days
inquiry now
Product Detail
PBT Long Glass Fiber Reinforced Composite

Excellent Electrical Insulation | Superior Dimensional Stability

Good Wear Resistance | Excellent Chemical Resistance

Download Product Brochure (PDF)


Key Properties

PBT long glass fiber composite offers high heat resistance, excellent chemical resistance, superior dimensional stability, and high rigidity, making it an ideal choice for applications requiring durable performance under thermal and chemically demanding environments. Below are the main mechanical and thermal characteristics:


Property Typical Value
 Test Method
Density
1.72 g/cm³
ASTM D-792
Tensile Strength
178 MPa
ISO：527

Notched Izod Impact

369 J/m
ASTM D-256
Heat Deflection Temperature
200 °C
ISO 75-2
Flexural Modulus
16549 MPa

ASTM D-790

Molding Shrinkage
0.10 - 0.30 %
ASTM D-955


Technical Advantages


High Heat Resistance  Excellent Chemical Resistance
High Rigidity  Superior Dimensional Stability
Good Wear Resistance  Excellent Electrical Insulation


Applications
PBT long glass fiber composites are widely applied in engineering fields where high heat resistance, chemical resistance, and dimensional stability are essential. Main fields of application include:

Automotive: connector housings, brackets, interior and exterior structural components, under-the-hood parts.
Electrical & Electronics:switch components, sensor housings, protective casings, mounting frames with electrical insulation requirements.
Industrial: mechanical gears, pump housings, valve components, structural supports exposed to heat and wear.

Consumer Goods: durable appliance housings, tool components, sports equipment, precision casings.


Processing Guidelines

PBT long glass fiber reinforced composites can be processed using conventional thermoplastic equipment. Recommended parameters:


Drying: Not always necessary, but 110℃ for 2-3 hours recommended.
Mold Temperature: 50-75℃ for optimal surface quality.
Screw Design: Use low-shear screws to avoid fiber breakage.


Additional Information
Packaging: 25kg/bag or jumbo bag
Processing Methods: Injection molding / extrusion
Storage: Keep dry, avoid direct sunlight
Shelf Life: 12 months under recommended storage conditions
