item no.:
PA12-NA-LCF30Payment:
T/T or L/C (other payment ways also can be diproduct origin:
Xiamen, ChinaColor:
Original color (also can be customized)shipping port:
Xiamen, China
Long Carbon Fiber Reinforced PA12 (Polyamide 12) is a premium engineering thermoplastic composite designed for lightweight structural applications requiring outstanding toughness, low moisture absorption, excellent dimensional stability, and long-term durability. Reinforced with 50% long carbon fiber, PA12-LCF50 offers exceptional stiffness, strength, fatigue resistance, and weight reduction, making it an ideal material for replacing metal in demanding industrial applications.
PA12-LCF50 consists of a polyamide 12 matrix reinforced with 50% long carbon fibers. The continuous long fiber structure creates an efficient stress-transfer network throughout the composite, providing superior mechanical performance, excellent creep resistance, and improved impact durability compared with conventional short carbon fiber reinforced PA12.
| Property | Unit | Typical Value |
|---|---|---|
| Tensile Strength | MPa | 259 |
| Tensile Modulus | MPa | 30625 |
| Flexural Strength | MPa | 335 |
| Flexural Modulus | MPa | 22693 |
| Notched Izod Impact | kJ/m² | 57 |
| Heat Deflection Temperature (1.8 MPa) | °C | 204 |
| Density | g/cm³ | 1.31 |
PA12-LCF50 is a high-performance engineering composite made by reinforcing polyamide 12 with 50% long carbon fiber to achieve exceptional strength, stiffness, and lightweight performance.
It offers high strength, excellent fatigue resistance, low moisture absorption, superior dimensional stability, excellent wear resistance, and outstanding long-term durability.

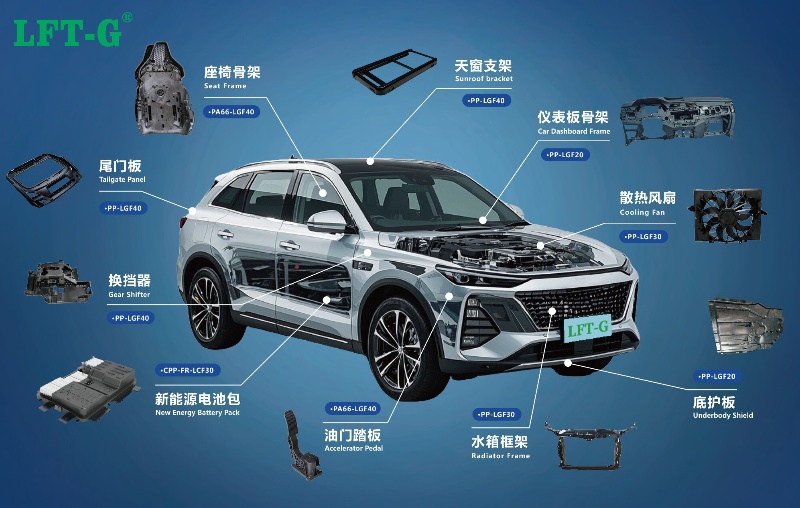

It is widely used in automotive, aerospace, hydrogen energy, medical devices, industrial equipment, sports equipment, and lightweight structural applications.
Long carbon fibers provide significantly better structural integrity, fatigue resistance, impact performance, and load-bearing capability than conventional short fiber reinforced materials.
Yes. PA12-LCF50 combines lightweight performance with excellent mechanical properties, making it an ideal alternative to aluminum and other metal components.
Contact our engineering team for material selection guidance, processing recommendations, technical datasheets, and customized PA12 long carbon fiber solutions.
Contact UsXiamen LFT Composite Plastic Co., Ltd., established in 2009, is a global supplier of long fiber reinforced thermoplastic (LFT) materials integrating R&D, production, and sales. We specialize in long glass fiber and long carbon fiber reinforced thermoplastics, including PP, HDPE, PA6, PA66, PA12, PPA, PPS, PEEK, TPU, ABS, PLA and other engineering plastics. Our products are certified to ISO 9001, ISO 14001, and IATF 16949 standards and are widely used in automotive, aerospace, new energy, medical equipment, power tools, sports equipment, and industrial manufacturing.
