Long Glass fiber Polymer

/

Long Glass fiber Reinforced MXD6

/Xiamen LFT MXD6 filling Long glass fiber30 high toughness injection molding natural color sample available

Xiamen LFT MXD6 filling Long glass fiber30 high toughness injection molding natural color sample available

  • item no.:

    MXD6-NA-LGF30
  • Payment:

    T/T or L/C (other payment ways also can be di
  • product origin:

    Xiamen, China
  • Color:

    Original color (also can be customized)
  • shipping port:

    Xiamen, China
inquiry now
Product Detail

MXD6


Polyadipyl-m-benzoylamine, referred to as mxd6, generally referred to as "nylon mxd6", resin than other engineering plastics have higher mechanical strength and modulus, is also a special high barrier nylon material. Although the barrier of mxd6 is slightly worse than that of pvdc and evoh, its barrier is not affected by temperature and humidity, which is especially suitable for high temperature and humid occasions. In today's barrier packaging and plastic instead of steel general trend, nylon mxd6 has become one of the most eye-catching new plastic varieties.

Structure performance: PA MXD6 nylon material has high strength, high rigidity, high thermal deformation temperature, small thermal expansion coefficient; Dimensional stability, low water absorption rate and small size change after water absorption, mechanical strength changes less; Forming shrinkage is small, suitable for precision forming processing; Excellent coating performance, especially suitable for high temperature surface coating; Excellent barrier to oxygen, carbon dioxide and other gases. Excellent mechanical and thermal properties and high strength, high modulus and heat resistance, high barrier, excellent cooking resistance


Advantages


1、Maintain high strength and rigidity in a wide temperature range
2、High heat deflection temperature, small coefficient of thermal expansion
3、Low water absorption, small size change after water absorption, less mechanical strength reduction
4、Small shrinkage rate of molding, suitable for precision molding process
5、Excellent paintability, especially suitable for surface painting under high temperature
6、Excellent barrier to oxygen, carbon dioxide and other gases

MXD6-LGF


MXD6 applications in the plastics modification industry

MXD6 can be compounded with glass fibers, carbon fibers, minerals and/or advanced fillers for materials containing 50-60% glass fiber reinforcement with exceptional strength and stiffness.
Even when filled with high levels of glass fiber, its smooth, resin-rich surface creates a high gloss finish like no glass fiber, making it ideal for painting, metal coating or creating naturally reflective housings.


1、High fluidity for thin wall
It is a very high flowing resin that can easily fill thin walls as thin as 0.5 mm thick even with glass fiber content as high as 60%.

2、Excellent surface finish
The resin-rich perfect surface has a highly polished appearance, even with a high glass fiber content.

3、Very high strength and stiffness
MXD6 with 50-60% glass fiber reinforcement has a tensile and flexural strength similar to many cast metals and alloys.

4、Good dimensional stability
At ambient temperature, the coefficient of linear expansion (CLTE) of MXD6 glass fiber composite is similar to that of many cast metals and alloys. It is highly reproducible due to low shrinkage and the ability to maintain tight tolerances (length tolerances can be as low as ± 0.05% if properly formed).

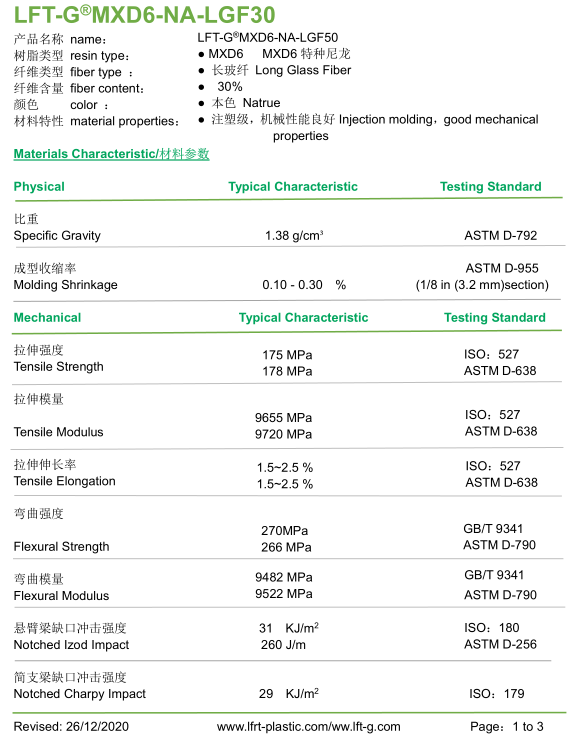

TDS for reference only




Application

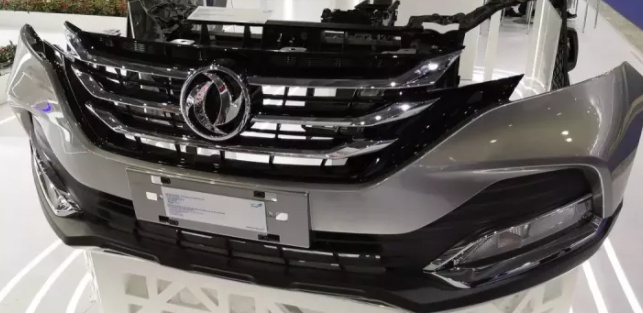

MXD6 replaces metal to make high quality structural parts for automobiles, electronics and electrical appliances

In automotive parts, many occasions require material products with high mechanical strength and good oil resistance, and can be used in the range of 120-160℃ for a long time. The glass fiber reinforced MXD6 has a heat resistance of up to 225℃ and a high strength retention rate at high temperature, which can be used for cylinder block, cylinder head, piston, synchronous gear of automobile engines, etc. MXD6/PPO alloy has the properties of high temperature resistance, high strength, oil resistance, wear resistance, good dimensional stability, etc. It can be used for vertical outer panels of automobile bodies, front and rear fenders, wheel covers and almost impossible to be stamped and formed by steel plates. curved parts and chassis of automobiles.
