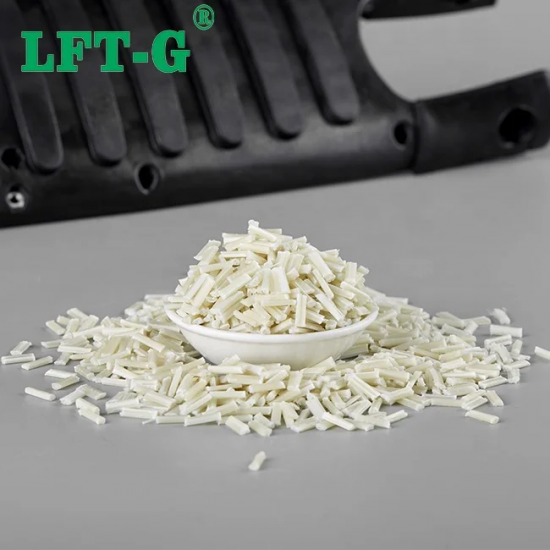

Glass Fiber Reinforced Nylon 66 Resin Pellets Injection Molding

Nylon 66, also written as nylon 6-6, nylon 6,6, or nylon 6/6, is a more crystalline version of nylon 6. It is also referred to as polyamide 66 or PA 66. It has improved mechanical properties due to its more ordered molecular structure. Nylon 66 material for machining has improved temperature resistance and lower rates of water absorption when compared to standard nylon 6.
  • item no.:

    PA 66 GF
  • Payment:

    Discussed
  • product origin:

    China
  • Color:

    Natural color or Customized
  • shipping port:

    Xiamen
  • Lead Time:

    2-10 workings days
inquiry now
Product Detail
PA 66 Long Glass Fiber Reinforced Composite

High Strength | High Stiffness | Excellent Heat Resistance | Fatigue Resistant

Download Product Brochure (PDF)



Key Properties

PA66 long glass fiber composite offers superior strength, stiffness, excellent heat resistance, and fatigue resistance, making it an ideal choice for high-performance engineering applications. Below are the main mechanical and thermal characteristics:


Property Typical Value
Test Method
Density
1.46 g/cm³
ASTM D-792
Tensile Strength
215 MPa
ISO:527
Notched Impact Strength
37 KJ/m2
ISO:180
Heat Deflection Temperature
254 °C
ISO 75-2
Flexural Modulus
1250 MPa
GB/T 9341
Molding Shrinkage
0.10 - 0.30 %
ASTM D-955



Technical Advantages


Superior Mechanical Strength   High Stiffness and Rigidity
Excellent Heat Resistance    Good Chemical Resistance
Outstanding Dimensional Stability   Enhanced Wear and Fatigue Resistance



Applications
PA66 long glass fiber composites are extensively used in engineering applications where strength, stiffness, and heat resistance are critical. Main fields of application include:

Automotive: front-end modules, bumper beams, underbody shields, structural brackets.

Electrical & Electronics: battery trays, appliance housings, connector bodies, switch panels.

Industrial: machine covers, conveyor components, pump housings, high-performance gears.


Consumer Goods: luggage shells, sports equipment, durable housings, mechanical components.



Processing Guidelines

PA66 long glass fiber reinforced composites can be processed using conventional thermoplastic equipment. Recommended parameters:


Drying: Not always necessary, but 85-105℃ for 3–5 hours recommended.
Mold Temperature: 75–90℃ for optimal surface quality.
Screw Design: Use low-shear screws to avoid fiber breakage.



Additional Information
Packaging: 25kg/bag or jumbo bag
Processing Methods: Injection molding / extrusion
Storage: Keep dry, avoid direct sunlight
Shelf Life: 12 months under recommended storage conditions



Certifications
