item no.:
HDPE-NA-LGFPayment:
Discussedproduct origin:
ChinaColor:
Natural color or Customizedshipping port:
XiamenLead Time：
2-10 working daysA high-performance composite material combining the toughness, chemical resistance and durability of HDPE with the superior reinforcement capability of long glass fibers.
Designed for lightweight structural applications requiring high strength, impact resistance and long-term reliability.

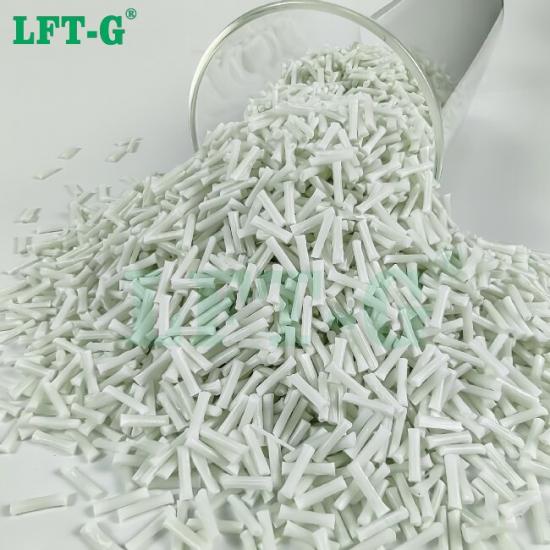

Request Technical DataHDPE-LGF is an advanced long glass fiber reinforced polyethylene composite material. By integrating long glass fibers into the HDPE matrix, the material achieves significantly improved mechanical strength, stiffness, creep resistance and dimensional stability.

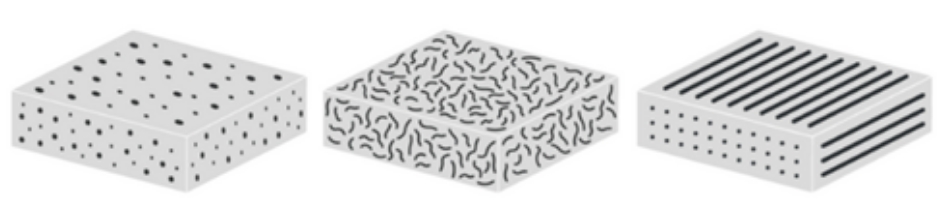

Unlike conventional short fiber reinforced plastics, long fiber technology creates a continuous reinforcement network inside the polymer structure, improving load transfer and structural performance.
During processing, long glass fibers maintain longer reinforcement paths inside the polymer matrix. The continuous fiber network improves load transfer efficiency and provides enhanced structural performance.
✓ Improved mechanical strength
✓ Higher impact resistance
✓ Better fatigue performance
✓ Improved creep resistance
✓ Enhanced dimensional stability
Provides enhanced tensile strength and stiffness for structural components requiring high load capacity.
Maintains excellent toughness under dynamic loading and demanding working environments.
Improves long-term performance under continuous mechanical stress.
Maintains excellent resistance against moisture, chemicals and harsh environments.
| Property | Standard HDPE | HDPE-LGF | Metal |
|---|---|---|---|
| Strength | Medium | High | High |
| Weight | Very Low | Low | High |
| Impact Resistance | Excellent | Excellent | Medium |
| Chemical Resistance | Excellent | Excellent | Limited |
| Corrosion Resistance | Excellent | Excellent | Poor |
HDPE-LGF provides lightweight and durable solutions for industries requiring high mechanical performance and long-term reliability.
Suitable for structural brackets, support parts, battery-related components and lightweight automotive assemblies.
Used in equipment parts, structural supports and components requiring high durability.
Ideal for outdoor applications requiring chemical resistance, lightweight design and long service life.
| Polymer Matrix | High Density Polyethylene (HDPE) |
| Reinforcement | Long Glass Fiber |
| Fiber Content | 20%-60% |
| Fiber Length | 6-25 mm |
| Processing Method | Injection Molding |
| Customization | Fiber Content / Color / Performance Requirements |
Specialized in long fiber reinforced thermoplastic materials for demanding applications.
Material grades can be adjusted according to mechanical performance and application needs.
Manufactured according to automotive quality management requirements including IATF 16949.
Supporting customers worldwide with stable production and technical service.
Contact LFT-G engineers for HDPE-LGF material recommendation, technical data and application support.
